How Do You Recharge a Dehumidifier
Let’s cut straight to the chase. When your dehumidifier stops pulling moisture from the air, the culprit is almost always a lack of refrigerant. That chemical compound, usually R-410A or R-22 in older units, does the heavy lifting.
It absorbs humidity from the air and releases it as water into your tank.
Recharging a dehumidifier isn’t like refilling a water bottle. You don’t just pour in more coolant and call it a day. It requires a manifold gauge set, a refrigerant tank, and a solid understanding of how the sealed system works.
If that sounds intimidating, don’t worry. I’m going to walk you through every step.
Here’s the short answer: Yes, you can recharge a dehumidifier yourself, but only if you have the right tools and a basic grasp of HVAC principles. If you’re not comfortable working with pressurized refrigerant, call a professional. That’s not a cop-out, it’s smart advice.
Refrigerant is under high pressure and can cause serious frostbite or injury if mishandled.
Understanding How a Dehumidifier Works
Before you touch a single valve, you need to understand the cycle. A dehumidifier works on the same principle as an air conditioner, minus the venting. Warm, humid air gets pulled over cold evaporator coils.
The moisture condenses on those coils and drips into a collection tray. The air then passes over warm condenser coils and exits back into the room, drier than before.
The refrigerant is the lifeblood of this system. It cycles through the compressor, condenser coil, expansion valve, and evaporator coil. It changes from a gas to a liquid and back again, absorbing heat and moisture as it goes.
If the refrigerant leaks out, the evaporator coils won’t get cold enough. You’ll hear the compressor running, but no water will collect. That’s your first clue you need a recharge.
Common Signs Your Dehumidifier Needs Recharging
How do you know it’s low on refrigerant and not just a clogged filter? Look for these signs:
- No water collection even after a full day of running
- Ice or frost building up on the coils
- The unit runs constantly but the humidity level barely drops
- A hissing sound near the compressor area, which could indicate a leak
- The compressor feels warm to the touch but the coils stay at room temperature
Any one of these symptoms points to low refrigerant. But here’s the catch: if there’s a leak, simply adding more refrigerant won’t fix the root problem. The new charge will leak out too.
You’ll need to find and seal the leak first, or you’ll be doing this again in a few weeks.
Safety First: Tools, Prep, and Legal Considerations
Let’s talk about safety and legality because these matter more than you think.
The Legal Side of Refrigerant Handling
Here’s something most DIYers don’t realize: in the United States, the Environmental Protection Agency (EPA) regulates refrigerant handling under Section 608 of the Clean Air Act. Venting refrigerant into the atmosphere is illegal. You’re also required to have proper certification to buy certain refrigerants in bulk.
For the DIY homeowner, this creates a bit of a gray area. You can legally work on your own appliance, but you can’t just buy R-22 off the shelf anymore at most supply houses. R-22 is being phased out due to its ozone-depleting properties.
R-410A is more common in newer units, but it’s still a controlled substance.
You can find small cans of refrigerant at big-box stores, but these are usually for automotive AC systems. Using them in a dehumidifier is risky because the fitting types and pressure requirements differ significantly.
Tools You’ll Need
If you decide to proceed, here’s what you’ll need:
- Manifold gauge set with low-side and high-side pressure readings
- Refrigerant tank with the correct type for your unit (check the label plate)
- Safety glasses and gloves rated for chemical handling
- Leak detection kit, either electronic or a soap-and-water solution
- A wrench set to access the service ports
- A refrigerant scale to measure the exact charge weight
That last item is crucial. Dehumidifiers don’t take much refrigerant. A typical unit holds between 10 and 20 ounces.
Adding just a few ounces too much will overcharge the system, leading to poor performance and potential compressor damage.
The Environmental Side of the Equation
“But what about the environment?” you might be asking. Overcharging causes higher pressure, which increases the strain on the compressor and shortens the unit’s lifespan. This means more waste in landfills.
A smarter approach is to prevent the problem altogether. The U.S. Department of Energy recommends regular maintenance on appliances to extend their lifespan.
That includes cleaning the coils on your dehumidifier yearly to reduce the workload on the compressor.
Identifying the Refrigerant Type and Access Ports
This step is non-negotiable. You cannot recharge a dehumidifier without knowing exactly which refrigerant your unit uses. Mixing refrigerants is dangerous.
It can cause the compressor to fail spectacularly, destroying the unit and potentially causing injury.
How to Find the Refrigerant Type
Look for the manufacturer’s nameplate or sticker on the back or side of the unit. It will list:
- The model number
- The voltage and amperage
- The refrigerant type (R-22, R-410A, or R-134A)
- The factory charge weight in ounces
Important note: R-410A operates at significantly higher pressures than R-22, about 50% higher. If your manifold gauges aren’t rated for R-410A, they can burst. Check the color-coding on your gauge set.
Most R-410A gauges are pink or purple. R-22 gauges are usually blue and red.
Locating the Service Ports
Dehumidifiers have service valves, just like air conditioners. These ports are typically located near the compressor at the bottom of the unit. You’ll recognize them by their brass or copper caps with a Schrader valve underneath, similar to the valve on a bicycle tire.
Some smaller dehumidifiers don’t have service ports at all. In that case, you have two options: install a piercing valve on the suction line, or take the unit to a professional. Piercing valves work, but they can create a tiny leak point.
Many HVAC techs recommend against them for long-term fixes.
Step-by-Step Recharging Guide
Here’s where the rubber meets the road. Follow these steps carefully, and you’ll have your dehumidifier running like new.
Image source: Pexels / Soudha J. (Pexels License)
Step 1: Prepare the Unit
Unplug the dehumidifier completely. If it’s been running, let it sit for at least 15 minutes. This allows the pressure to equalize throughout the system.
Remove the housing to access the compressor. You’ll need a screwdriver, and possibly a socket set, to get the panels off. Keep the screws organized; you don’t want to lose them.
Step 2: Check the Existing Pressure
Attach your manifold gauges to the service ports. The blue hose goes to the low-side port, and the red hose goes to the high-side port. The yellow hose connects to the refrigerant tank.
With the unit off, read the static pressure. This tells you the total refrigerant level in the system when it’s been sitting for a while. For R-410A, typical static pressure at room temperature (75°F) is around 230, 250 PSI.
For R-22, it’s around 70, 85 PSI.
If your static pressure is significantly lower than these ranges, you have a pretty good leak. If it’s close to zero, all your refrigerant has escaped, and there’s definitely a breach somewhere.
Step 3: Find and Fix the Leak
I cannot stress this step enough. If you skip it, you’re just throwing money away.
Use your electronic leak detector around all the solder joints, the compressor terminals, and the condensing coil. If you don’t have an electronic detector, you can use a mixture of dish soap and water. Brush it on the suspected areas and look for bubbles.
Image source: Pexels / FOX ^.ᆽ.^= ∫ (Pexels License)
Common leak points include:
- The solder joints where copper tubing connects to the coils
- The valve stem cores
- Cracks in the condenser coil caused by vibration
- Corrosion on the aluminum fins
Small leaks can sometimes be sealed with specialized refrigerant leak sealant. These products circulate through the system and plug tiny holes. They don’t work on large breaches, and they won’t fix a badly cracked coil.
In that case, you’re looking at a new coil, which often costs more than a replacement dehumidifier.
Step 4: Evacuate the System
Wait, you might be thinking, “Can’t I just push the refrigerant out and add more?” No. Absolutely not.
Moisture and air inside the system cause two problems. First, air reduces the cooling efficiency. Second, moisture reacts with refrigerant and oil to form acids that eat the compressor from the inside.
To remove moisture and air, you need a vacuum pump. Connect it to the low-side service port and run it for at least 30 minutes. This pulls a deep vacuum, ideally below 500 microns, that boils off any trapped moisture.
Pro tip: If you don’t own a vacuum pump, you can rent one from most auto parts stores. This step makes the difference between a professional-grade recharge and a hack job.
Step 5: Recharge the System
Now it’s time to add the refrigerant. Here’s the correct sequence:
- Weigh the tank before you start. Note the exact weight.
- Purge the yellow hose to remove any air from the line.
- Open the refrigerant tank valve slowly.
- Start the dehumidifier once the system has equalized, then open the low-side valve on the manifold to let gas flow into the compressor.
Add refrigerant in short bursts. Don’t dump the entire charge at once. Each time you add a small amount, let the system run for a few minutes to stabilize.
The target is the weight stamped on the nameplate. Let’s say it says “10 ounces.” That doesn’t mean you add exactly 10 ounces. It means the total charge in the system should be 10 ounces.
You need to subtract what was already in the system from your new refrigerant addition.
Here’s the math: If you evacuated completely, the system has zero refrigerant inside. In that case, add the full 10 ounces. If you couldn’t recover the existing charge, you need to carefully monitor pressure and superheat to avoid overcharging.
Step 6: Check the Pressures
With the unit running, record the low-side and high-side pressures. Your target will vary with ambient temperature. On a typical 70°F day, low-side pressure for R-410A should be around 110, 120 PSI, and high-side around 275, 300 PSI.
For R-22, low-side should be around 65, 75 PSI, and high-side around 180, 220 PSI.
Getting the exact superheat right takes practice. Measurements can vary based on your altitude, the humidity in the room, and the airflow across the coils. This is why I always tell people: the first time you do this, allow yourself plenty of time.
Expect to fiddler with the charge for at least an hour.
Verifying Performance After Recharging
Once you’ve topped off the refrigerant, your work isn’t done. You need to confirm the unit actually performs well.
Image source: Pexels / FOX ^.ᆽ.^= ∫ (Pexels License)
Check the Coil Temperature
Let the unit run for 15 minutes. Then feel the evaporator coil. It should feel noticeably cold, near the freezing point, but not fully frosted over.
If it’s warm, your charge might still be low.
Monitor the Water Collection
Over the next few hours, watch the water tank. A properly functioning dehumidifier rated for 50 pints per day should fill at least half of its tank in a humid room over 8 hours. If you don’t see this level of production, something is still off.

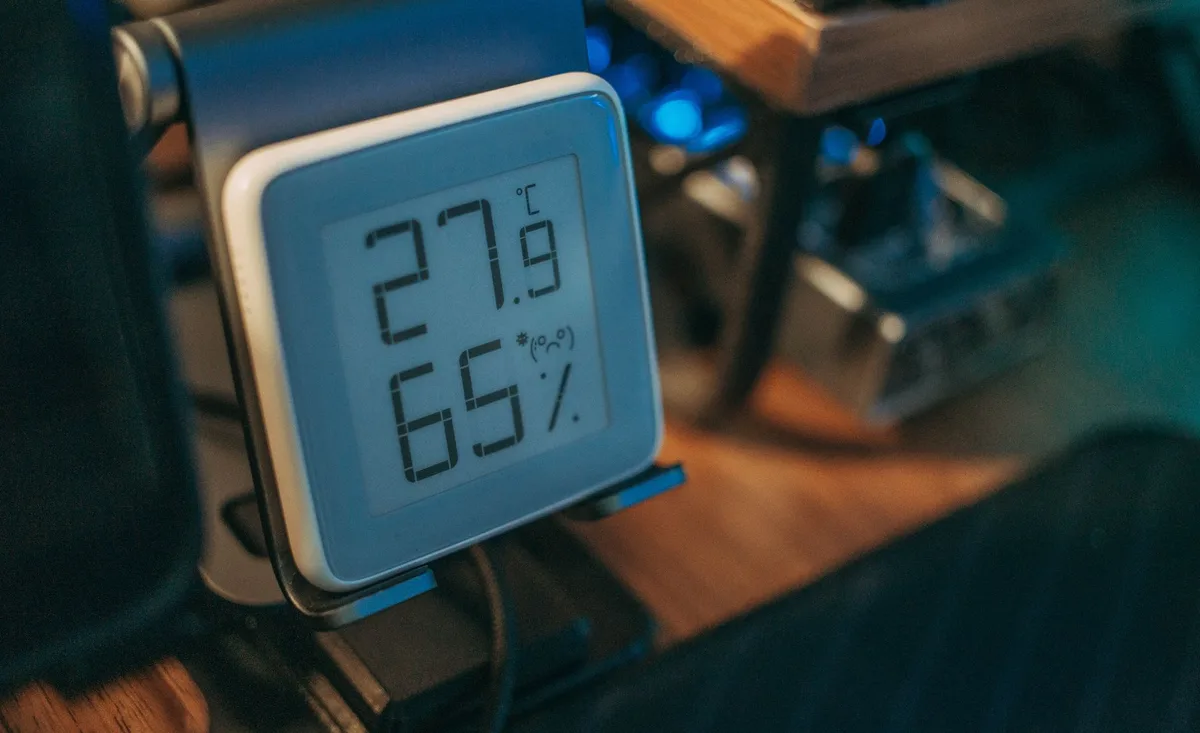

Use a Hygrometer for Verification
A hygrometer measures relative humidity. Most newer dehumidifiers have a digital hygrometer built into their control panels, but you can buy a separate one to verify performance.
The goal is to bring the room’s humidity down to 50% or below. If your unit runs all day but the humidity stays stuck at 65%, either your recharge wasn’t correct or the unit has another issue.
Don’t limit hygrometer use to just checking the dehumidifier. The National Institute of Standards and Technology (NIST) provides guidelines on humidity measurement and why accuracy matters for both comfort and indoor air quality.
Maintenance Tips to Extend the Life of a Recharged Dehumidifier
Now that you’ve done the hard work, you want to protect your investment. A well-maintained dehumidifier can last 10 years or more. Neglected ones give up around year three.
Clean the Air Filter Monthly
This is the single easiest thing you can do. A clogged air filter restricts airflow, which makes the compressor work harder and can cause the coils to ice up. Remove the filter monthly and vacuum it or rinse it with water.
Let it dry completely before reinstalling.
Keep the Coils Free of Dust and Debris
Every six months, pop the housing off and inspect the evaporator and condenser coils. Use a soft brush or compressed air to remove accumulated dust. Coils coated in dust transfer heat far worse than clean coils, putting extra strain on your newly recharged system.
Level the Unit
Most dehumidifiers have a built-in humidistat that relies on the unit sitting level. If the unit is tilted, the float switch that shuts off the tank when it’s full might not work correctly. That leads to overflow and potential water damage to your floors.
Store Appropriately in the Off-Season
If you live in a climate with seasonal humidity, store your dehumidifier when you don’t need it. Empty the water tank completely, clean the filter, and cover the unit to keep out dust. Keep it in a dry location, it’s an appliance, but it still hates dampness.
Check the Drain Hose for Clogs
If you use a continuous drain hose, kinks and clogs are the most common failure point. A clogged hose causes water to back up into the unit, which can damage the condensate pump. Every few months, detach the hose and run vinegar through it to dissolve mineral deposits.
When to Call a Professional
Let’s be honest here. There comes a point where DIY makes no sense. Here’s when you should hang up your manifold gauges and dial a professional:
- The compressor won’t start. If it hums and trips the circuit breaker, the compressor windings might be shot. Replacing a compressor is a large job.
- You can’t find the leak. If your electronic detector shows nothing, but the pressures keep dropping, the leak could be in a spot that requires unwelding the coil.
- The unit is more than 8 years old. At some point, the cost of professional repair exceeds the cost of a new unit. A professional recharge runs between $150 and $300, plus the cost of the leak repair. A new 50-pint dehumidifier costs around $200, $300.
If you decide to call in a pro, ask upfront whether they are EPA-certified. Professional HVAC techs are required to hold a Section 608 certification to handle refrigerants. This isn’t just paperwork, it ensures they know how to recover, recycle, and recharge your system without damaging you or your equipment.
The Bottom Line: Is Recharging a Dehumidifier Worth It?
Here’s my honest take: it depends on your situation.
If you own a high-end unit with a heavy-duty compressor and a tank capacity above 70 pints, recharging it is worth the effort. These units can set you back $500 or more, so a $60 DIY recharge extends the life of a valuable investment.
If your dehumidifier is a budget model under $150, I’d tread carefully. These units use lighter-gauge components, and the cost of a vacuum pump rental plus the time you’ll invest can exceed the replacement value.
But there’s one thing I’ll never recommend: ignoring the problem. A dehumidifier running on low refrigerant works harder and longer to achieve less. That extra runtime drives up your electricity bill, and the strain on the compressor eventually kills the unit completely.
Recharging a dehumidifier is a practical skill. It’s the kind of knowledge that separates homeowners from renters, so to speak. You’ll save money, you’ll keep your basement dry, and you’ll avoid the hassle of hauling a dead unit to the curb.
Just respect the refrigerant. Do the repair properly, seal the leaks, and verify your work. If you do that, your dehumidifier will reward you with another few years of dry, comfortable air.
And isn’t that the entire point?
