How To Install Crawl Space Dehumidifier
A damp crawl space can rot floor joists, spawn mold, and drive up heating bills. Installing a dedicated dehumidifier stops that cycle before it starts. I’ve done dozens of these jobs, and the process is straightforward when you follow a clear sequence.
Below is the step‑by‑step method I use on every project.
Assess the Crawl Space
First, measure the area. Multiply length by width to get square footage. Most residential crawl spaces run 800, 2,500 sq ft.
Next, check the existing humidity with a hygrometer. Anything above 60 % relative humidity signals a problem. Look for standing water, wet insulation, or visible mold.
Note the height of the space; you need at least 18 in. of clearance for the unit and drainage pipe.
Choose the Right Dehumidifier
Match capacity to the space. A 70‑pint unit handles up to 2,500 sq ft at 60 % RH. For larger or wetter areas, step up to a 90‑pint or 120‑pint model.
Look for a low‑temperature rating (down to 33 °F) because crawl spaces stay cool year‑round. Energy‑Star certification saves money over the long haul. Brands like Aprilaire, Santa Fe, and AlorAir publish reliable performance data; the EPA’s moisture‑control guide also lists recommended sizing charts EPA moisture control.
Gather Tools and Materials
You’ll need:
- Dehumidifier unit
- 1‑in. PVC or flexible condensate hose
- Condensate pump (if gravity drain isn’t possible)
- 2‑in. PVC vent pipe for exhaust (optional)
- Level, drill, 1/2‑in. hole saw, screwdrivers
- Vapor‑barrier tape and 6‑mil polyethylene sheeting
- Zip ties, hose clamps, and a GFCI‑protected outlet
Having everything on site prevents mid‑job trips to the supply house.
Prepare the Crawl Space

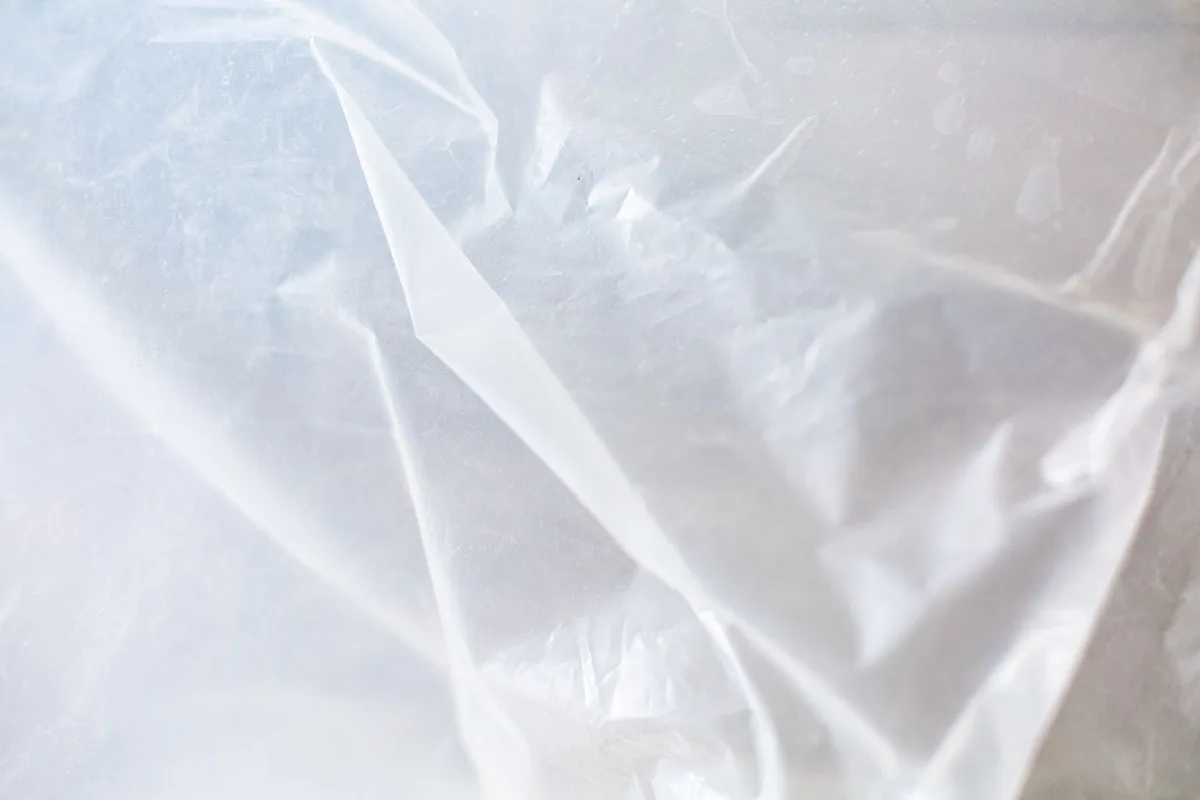

Clear debris, old insulation, and any organic material. Lay a continuous 6‑mil polyethylene vapor barrier over the dirt floor. Overlap seams by 12 in. and seal with vapor‑barrier tape.
Run the barrier up the foundation walls at least 6 in. and tape it there. This step alone can drop RH by 10‑15 %.
Install the Dehumidifier
Place the unit on a level concrete block or a sturdy plastic pallet. Keep it at least 12 in. from walls for airflow. If the model has built‑in casters, lock them.
Orient the air intake toward the center of the space and the exhaust toward the perimeter. Secure the unit with two 3‑in. lag bolts through the mounting brackets into the block. Double‑check level; a tilted unit won’t drain properly.
Set Up Drainage
Gravity drain is ideal. Run a 1‑in. PVC line from the unit’s drain port to a floor drain or sump pit, maintaining a 1/4‑in. per foot slope.
When a floor drain isn’t reachable, install a condensate pump. Mount the pump on the same block, connect the unit’s drain hose to the pump inlet, then run the pump’s discharge line to the nearest drain or exterior. Use a check valve to prevent backflow.
Connect Power and Controls
Plug the dehumidifier into a dedicated GFCI outlet. If the crawl space lacks one, hire an electrician to add a circuit. Many modern units ship with a built‑in humidistat; set the target RH to 50 %.
For remote monitoring, connect the Wi‑Fi module (if equipped) to your home network. Test the control board: the display should read current RH and the compressor should cycle on when humidity exceeds the set point.
Test and Calibrate
Close the crawl‑space access door. Let the system run for 2 hours. Verify that the drain line flows freely, no gurgling or pooling.
Check the hygrometer again; it should read 45‑55 % RH. Adjust the humidistat up or down in 5 % increments until the space stabilizes. Listen for unusual vibration; tighten any loose mounting bolts.
Maintain the System
Clean the air filter every 30 days during the first season, then quarterly. Inspect the condensate pump float switch annually; debris can jam it. Flush the drain line with a 50/50 vinegar‑water mix each spring to prevent algae buildup.
Replace the filter per the manufacturer’s schedule, usually once a year. Keep the vapor barrier intact; repair tears immediately with tape.
Frequently Asked Questions
Can I use a portable household dehumidifier?
No. Household units aren’t rated for low‑temperature operation and will freeze up.
Do I need a permit?
Most jurisdictions treat this as a mechanical installation; a permit is rarely required, but check local code.
What if the space is taller than 4 ft?
You can still install the same way; just ensure the unit sits on a stable platform and the drain line maintains slope.
How long before I see results?
Expect a noticeable drop within 24 hours; full stabilization takes 3‑5 days.
Is a condensate pump noisy?
Modern pumps run under 45 dB, comparable to a refrigerator hum.
Installing a crawl‑space dehumidifier is a one‑weekend job that pays off for decades. Follow the steps above, keep the drainage clear, and your crawl space will stay dry, healthy, and energy‑efficient.
