How to Adjust Toilet Float Level

A toilet that runs continuously, won’t flush properly, or leaks water into the bowl is often suffering from one simple issue: an improperly adjusted float level. This crucial component controls how much water fills your toilet tank after each flush. When it’s not set right, you get all sorts of annoying problems.

The good news? Adjusting your toilet float level is a straightforward fix most homeowners can handle with basic tools and a little guidance.

This guide walks you through everything you need to know. We’ll cover why the float level matters, different types of float mechanisms, and step-by-step instructions to get your toilet running efficiently again. You’ll be saving water and eliminating those phantom flushes in no time.

Why Your Toilet Float Level Matters

Think of your toilet’s float as the gatekeeper of water. After you flush, the tank empties. The float rises with the water level, and once it reaches a predetermined height, it signals the fill valve to shut off, stopping the flow of water.

If the float is set too high, the tank will overfill, wasting water and potentially causing a constant trickle into the overflow tube, which is usually audible as a phantom running toilet. If it’s set too low, the tank won’t fill with enough water for a strong flush, leading to incomplete waste removal and the need for multiple flushes, another water wastage issue. Getting this level just right is key to optimal toilet function, water conservation, and a quiet bathroom.

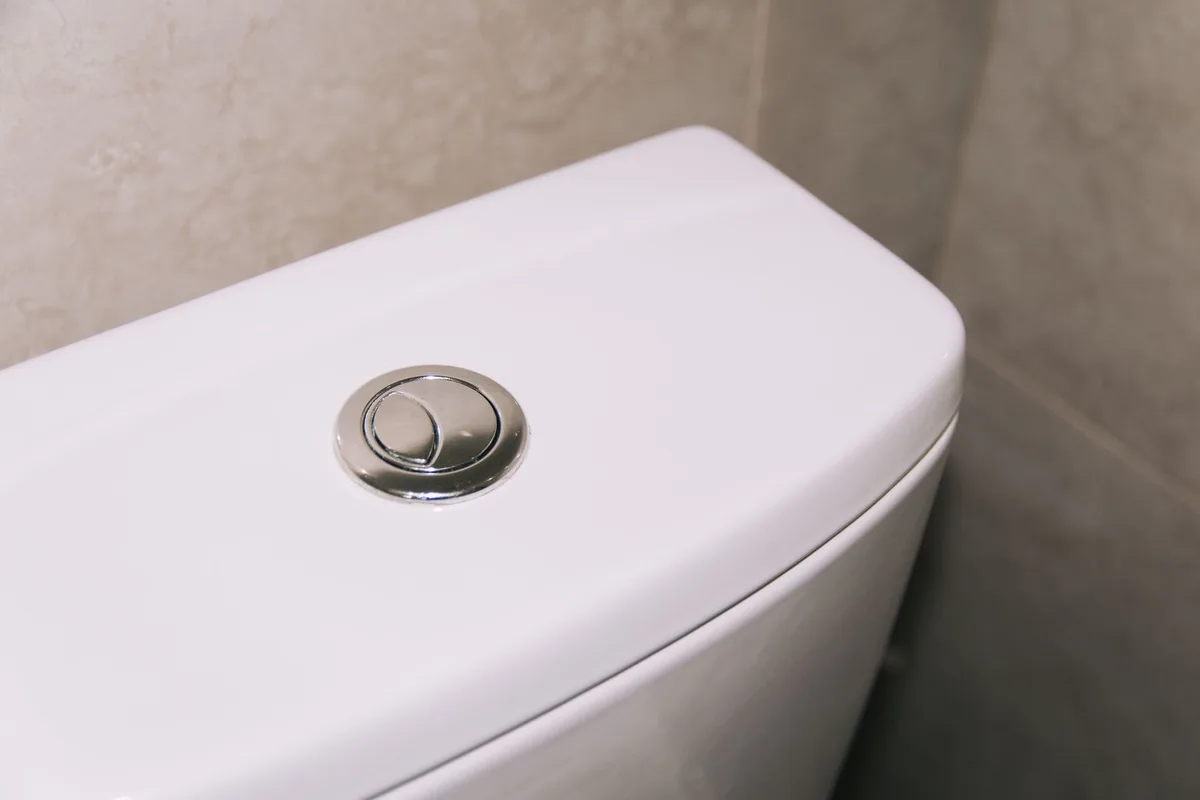

Image source: Pexels / Алексей Вечерин (Pexels License)

Common Toilet Float Types and How They Work

Before you can adjust your float, you need to know what you’re dealing with. Toilet floats generally fall into a few main categories. Understanding your specific type will make the adjustment process much clearer.

Ballcock Floats (Cup or Ball Type)

These are the oldest and most traditional types. You’ll recognize them by the large, spherical ball or a cup-shaped mechanism attached to a metal arm.

• Ball Type: A hollow plastic or metal ball is connected by an arm to the fill valve. As the water rises, so does the ball, lifting the arm and eventually closing the fill valve.
• Cup Type: Instead of a ball, a plastic cup slides up and down a vertical rod. This cup is attached to the fill valve and seals the water intake when it reaches the correct height.

Adjusting these often involves a screw or a clip on the arm that you can move to change the ball or cup’s height.

Fluidmaster-Style (Modern Ball-Type or Floating-Disc)

These are very common in toilets manufactured over the last few decades. They typically use a fill valve with a float that encircles the valve itself.

• Modern Ball-Type: Similar to the old ballcock, but the float is often a smaller, sleeker plastic ball, or a cylindrical float, that moves up and down a central shaft attached to the fill valve.
• Floating-Disc: Some newer models use a disc that floats on the water’s surface, connected to a rod that actuates the fill valve.

These floats usually have a clip or screw mechanism that allows for easy height adjustment.

Other Float Mechanisms

While less common for DIY adjustments, some high-efficiency toilets or very modern designs might feature different integrated float systems that are part of a sealed fill valve assembly. If your toilet has a fill valve that looks completely sealed with no visible arm or ball, you might need to consult your toilet manufacturer’s specific instructions or consider replacing the entire fill valve.

How to Adjust the Toilet Float Level: A Step-by-Step Guide

Let’s get your toilet running perfectly. Follow these steps carefully.

Step 1: Gather Your Tools

You won’t need much for this job.

• Adjustable Wrench or Pliers: For any specific nuts or bolts, though many adjustments don’t require them.
• Screwdriver (Phillips or Flathead): Essential for many screw-type adjustments.
• Gloves (Optional): To keep your hands clean.
• Towel or Rag: For any drips.

Step 2: Access the Toilet Tank Components

This is the crucial first step. You need to be able to see and reach the float mechanism.

1. Turn off the water supply: Locate the shut-off valve for your toilet. It’s usually on the wall behind the toilet, near the floor. Turn it clockwise until it stops.
2. Flush the toilet: Flush the toilet and hold down the handle to drain as much water as possible from the tank. This makes it easier to work.
3. Remove the tank lid: Carefully lift the lid off the toilet tank and set it aside on a soft surface (like a towel) to prevent scratching.

You should now see the fill valve assembly, the float, and the overflow tube.

Step 3: Identify Your Float Type and Adjustment Mechanism

Now, take a close look at the float in your toilet tank.

• Ballcock (Ball or Cup): Look for a metal arm connecting a ball or cup to the fill valve. There’s often a small screw at the point where the arm attaches to the valve, or a clip that can be moved.
• Modern Fill Valve (Encircling Float): You’ll see a float that wraps around or slides up and down the fill valve column. Look for a clip on the side of the float or the valve that you can squeeze or slide, or a small screw.

Step 4: Adjust the Float Level

This is where you make the actual change. The goal is to set the water level so it’s about 1/2 to 1 inch below the top of the overflow tube.

Adjusting Ballcock Floats:

• Screw Adjustment:
  1. Locate the screw at the hinge of the arm connecting the ball/cup to the fill valve.
  2. To lower the water level (stop water sooner), turn the screw clockwise. This generally lifts the arm slightly.
  3. To raise the water level (let water fill higher), turn the screw counter-clockwise. This usually lowers the arm slightly.
  4. Make small adjustments. Turn the screw a quarter-turn at a time and test.
• Clip Adjustment (Less Common): Some older arms may have a clip that you can slide up or down the arm to set the height. Slide it to adjust.

Adjusting Modern Fill Valve Floats:

• Clip Adjustment:
  1. Find the clip on the float or the fill valve shaft. You’ll usually need to squeeze this clip to release it.
  2. Once released, you can slide the float up or down the shaft.
  3. To lower the water level, slide the float down.
  4. To raise the water level, slide the float up.
  5. Re-engage the clip once the float is at the desired height.
• Screw Adjustment:
  1. Some modern fill valves have a screw located on the side or top of the fill valve assembly.
  2. Turning this screw will raise or lower the float arm. Righty-tighty, lefty-loosey usually applies for raising/lowering, but check your specific valve. Again, make small adjustments.
• Floating-Disc Adjustment: Often, the disc has a rod with a mechanism you can twist or slide to alter its height.

Important: The Overflow Tube Rule

Remember, the ideal water level is about 1/2 to 1 inch below the top of the overflow tube. The overflow tube is the vertical pipe in the center of the tank. It’s a safety feature; if the fill valve fails, water will drain into the bowl through this tube rather than flooding your bathroom.

Never let the water level reach the top of this tube.

Step 5: Test the Water Level and Flush

Once you’ve made an adjustment, it’s time to see if it worked.

1. Turn the water supply back on: Slowly turn the shut-off valve counter-clockwise.
2. Let the tank fill: Watch as the tank fills with water. Observe how high the water reaches before the fill valve shuts off.
3. Check the level: Is the water level about 1/2 to 1 inch below the overflow tube?
4. Flush the toilet: Flush the toilet and check its performance. Does it flush properly? Does the water stop filling at the correct level?
5. Repeat if necessary: If the water level is still too high or too low, turn off the water again, make another small adjustment, and re-test. Patience is key here.

Step 6: Reassemble and Final Checks

Once you’re satisfied with the water level and flush performance:

1. Replace the tank lid: Carefully place the lid back onto the tank.
2. Check for leaks: Listen for any sounds of running water. Briefly check around the base of the toilet and the supply line for any unexpected drips.
3. Regular checks: It’s a good idea to check your toilet’s float level and water usage periodically, perhaps every six months or so.

Troubleshooting Common Issues

Even with careful adjustments, you might run into a few snags.

Toilet Won’t Stop Running (Phantom Flush)

This usually means the float is set too high, and water is constantly flowing into the overflow tube. Adjust the float to a lower water level.

Toilet Doesn’t Flush Properly

If the tank isn’t filling with enough water, the flush will be weak. This means the float is set too low. Adjust the float to a higher water level, ensuring it stays at least half an inch below the overflow tube.

Fill Valve Keeps Running After Tank Fills

If the float is at the correct level but the fill valve won’t shut off, the fill valve itself might be faulty. This can be due to a worn-out diaphragm, debris in the valve, or a damaged seal. In this case, the fill valve may need to be replaced.

You can find replacements at most hardware stores and online. For guidance on replacing the entire fill valve, you might want to look into general plumbing repair tips.

Float Arm Stuck or Won’t Adjust

Sometimes, the arm or float mechanism can become corroded or stiff. Gently try to move it. If it’s still stuck, a little plumber’s silicone lubricant might help, or you may need to replace the entire fill valve assembly.

When to Consider Replacing the Fill Valve

While adjusting the float level is often a simple fix, it’s not a permanent one if the fill valve itself is failing. Signs that indicate it’s time to replace the entire fill valve include:

• Constant running: Even after adjusting the float to its lowest setting, the toilet continues to run.
• Leaking from the valve: Water visibly leaks from the base of the fill valve into the tank.
• Difficulty shutting off: The fill valve takes a very long time to shut off, or doesn’t shut off completely.
• Cracked or damaged components: The float, arm, or valve body appears physically damaged.
• Excessive noise: The fill valve makes loud groaning or hissing noises when filling.

Replacing a fill valve is also a relatively straightforward DIY task. You’ll typically unscrew the supply line, unbolt the old valve from the tank, and install the new one following the manufacturer’s instructions.

Water Conservation and Your Toilet Float

An accurately set toilet float is a simple yet effective way to conserve water. By ensuring your tank only fills to the optimal level for a complete flush, you prevent unnecessary water usage. Older toilets can use up to 6 gallons per flush, while modern, efficient models use 1.6 gallons or less.

Ensuring your float is correctly adjusted contributes to this efficiency and helps to reduce your water bill. If you’re looking for ways to reduce your household’s water consumption, checking and adjusting your toilet float is a fantastic starting point. For other home water-saving tips, you might find resources on general home efficiency helpful.

Conclusion

Adjusting your toilet float level is a vital part of toilet maintenance that directly impacts its performance and your water bill. It’s a simple fix that empowers you to take control of a common household problem. With these clear steps, you can confidently tackle this task, ensuring your toilet flushes efficiently and quietly, all while conserving precious water.

So next time you hear that phantom flush or experience a weak flush, don’t call a plumber just yet. Grab a screwdriver, follow this guide, and enjoy a well-functioning toilet.
